Everything Proof !

TOUGHBOOK 40

Windows 11 Pro Fully Rugged Laptop with 14.0" Outdoor Display and Modular Expansion Areas...

Scroll down

Key features

Windows 11 Pro 64-bit
Intel® Core™ Ultra5 135H Processor (with Intel vPro® Technology) / Intel® Core™  Ultra7 165H (with Intel vPro® Technology) Processor optional
14" Full-HD Active Matrix LCD, capacitive Touch Screen, 1.200cd/m² brightness
Maximum flexibility by four Expansion Areas
Up to 12 hours battery life with standard battery

AI capabilities underpinned by enhanced graphics performance

One of the first rugged notebooks using Windows 11 Pro to offer AI edge processing capabilities, the new 14-inch TOUGHBOOK 40 utilises the Intel® Core™ Ultra 5 processor 135H (with Intel vPro® Technology).

For those requiring unmatched performance for the most demanding applications, the optional new Intel® Core™ Ultra7 processor 165H (with Intel vPro® Technology) delivers an additional boost in computing power.

Both processors feature a dedicated AI chipset that enables data to be collected, stored, and analysed using artificial intelligence, without uploading and downloading data through a connection to the cloud – and without affecting the device’s overall performance and processing power.

Meet the toughest TOUGHBOOK yet

TB40 Header

14" FULLY RUGGED WINDOWS 11 PRO NOTEBOOK WITH FULL-HD TOUCH SCREEN

TOUGHBOOK 40 with Windows 11 Pro, magnesium chassis and flexible configurations is the most versatile 14" fully rugged TOUGHBOOK ever built, but doesn't compromise on durability with improved strength and IP66 resistant design.In terms of flexibility, the TOUGHBOOK 40 is equally outstanding. It offers a huge array of flexible configuration options, making it easier for customers to have exactly the device they want.

Adaptable to any mission, flexible in any conditions

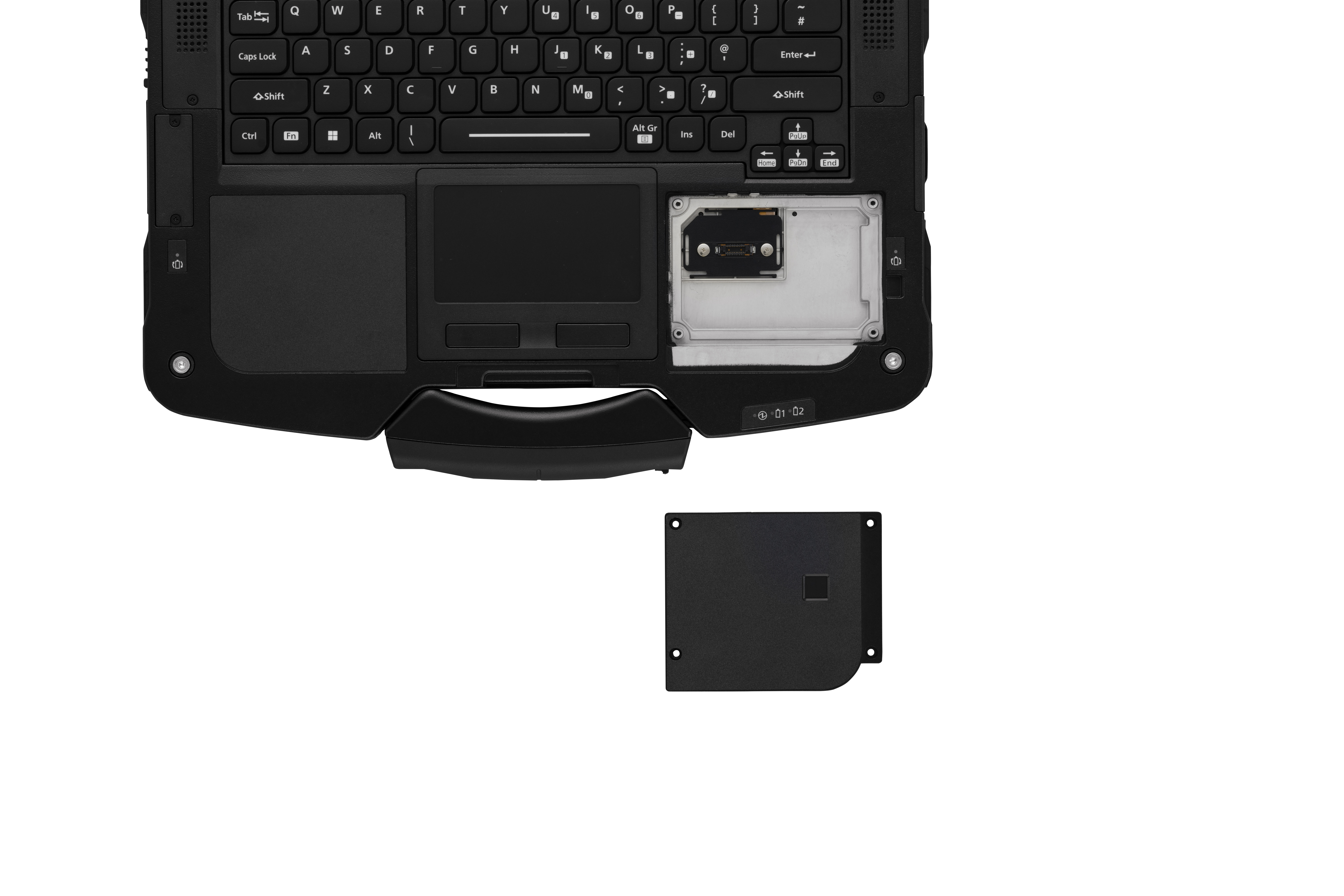

As well as a user replaceable battery, RAM and SSD, the TOUGHBOOK 40 notebook has four other expansion areas e.g. for smart card and fingerprint readers, including a multi-user authentication for when the notebook is being used by a team.

Designed for discretion

On the road or in the field, the TOUGHBOOK 40 notebook is geared up for vehicle diagnostics and maintenance as well as defence training. It also has a new all-black exterior, and a one touch Concealed Mode function, making it the perfect partner for operations that require some stealth.

No more device failures, downtime or interrupted work

Engineered from the ground up to be used on-the-go and in harsh environments, this device is tested to military standard (MILSTD810H) and is the first TOUGHBOOK notebook that contains a complete IP66 rating. It’s also built to withstand drops of up to 180cm as well as knocks, vibrations and extreme temperatures for ultimate reliability in any environment.

Get optimised connectivity thanks to 4G LTE with the option of 5G - both offering eSIM support. And with a quad path-through antenna connector, and up to 36-hours of battery life (thanks to optional battery hot-swap), your team will always be able communicate, access critical info and report in real time when on the move.

Ready to serve

Specifications table

Mobile Computing PlatformIntel® Core™ i5-1145G7 vPro™ Processor (optional Intel® Core™ i7-1185G7 vPro™*)
Operating SystemWindows 11 Pro
RAMBuilt-in 16GB RAM (max 64GB RAM*)
Graphic ChipIntel® UHD Graphics, supports Intel® Iris® Xe Graphics when 2 RAM Modules installed
StorageQuick release 512GB NVMe OPAL SSD (with heater). Optional 2nd SSD*
LCD14.0" Active Matrix (TFT) colour LCD 1920 x 1080 (FHD) LCD with sunlight-viewable glove-enabled touchscreen (up to 1,200cd/m² brightness)
Bluetooth™5.1 Class 1
Wireless LANIntel® Wi-Fi6 AX201

Accessories & Software

AC (Mains) Adapters

CF-AA5713A2A TOUGHBOOK AC Adapter

CF-AA5713AA TOUGHBOOK AC Adapter. AC Adapter compatible with FZ-40 / FZ-G2 / CF-20 / CF-31 / CF-33 / CF-53 / CF-54 / CF-D1

Showing 1 of 1

Batteries

FZ-VZSU1XU

Battery for TOUGHBOOK FZ-40.

Showing 1 of 1

Carrying Solutions

FZ-VNS401U

Shoulder Strap for FZ-VNS401U.

Showing 1 of 1

Docking Stations

FZ-VEB401U

TOUGHBOOK FZ-40 Desktop Port Replicator / Dock.

Showing 1 of 1

Stylus Pen & Tether

FZ-VNP401U

TOUGHBOOK FZ-40 Capacitive Stylus Pen.

Showing 1 of 1

Keyboards

FZ-VKB40207W

TOUGHBOOK 40 Rubber Keyboard.

Showing 1 of 1
