Insertion

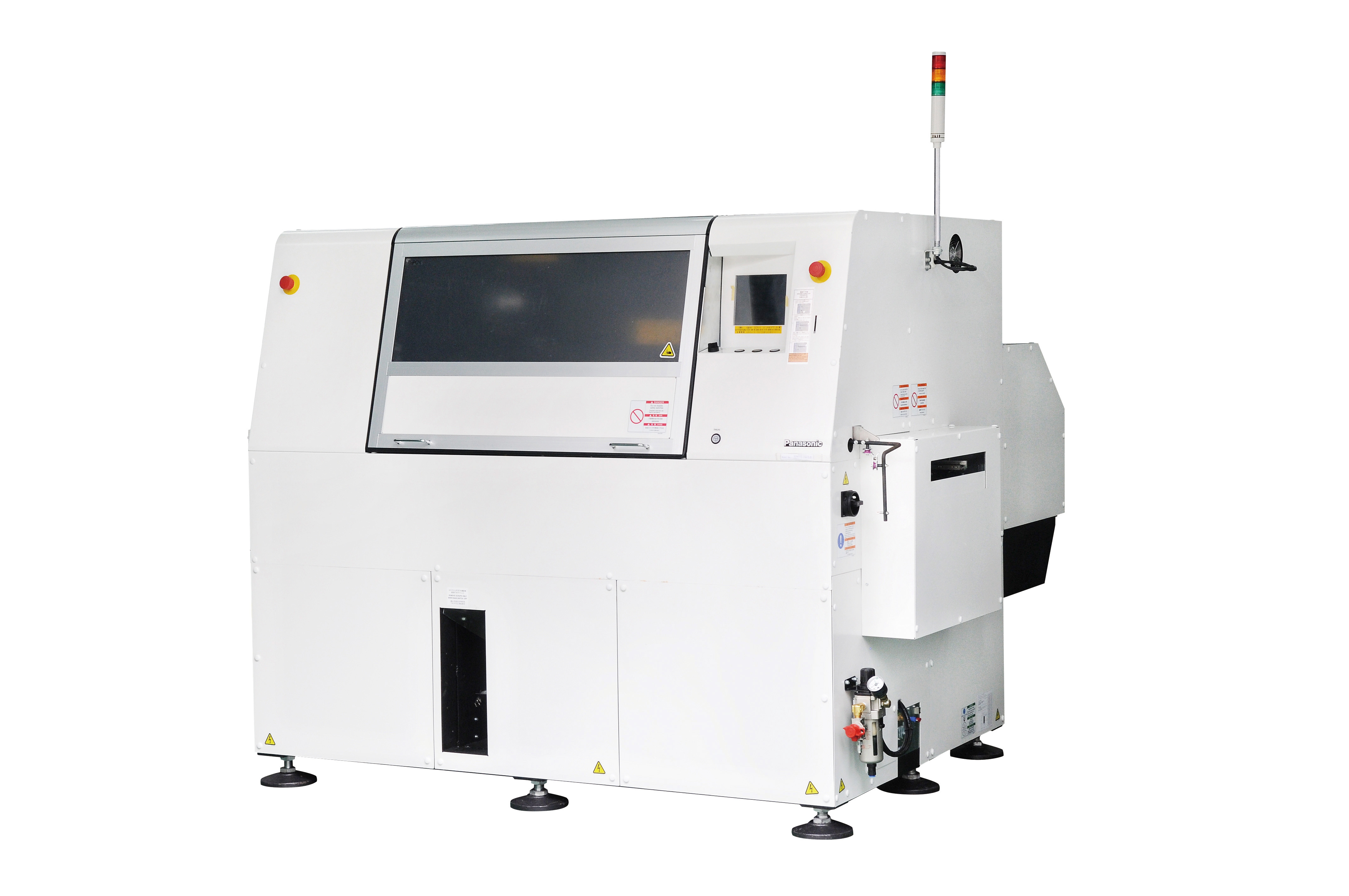

AV132

High speed axial lead component insertion machine for high productivity with High speed insertion of 0.12 s / component , sequential component supply system and vertical automated feeder

View specifications Share page

Supplied with a 40 or 80 component feeder with optional jumper wire, the compact supply unit configuration of the AV132 can fit both ammo pack and reel. The dual partition configuration enables a fast changeover. The next job can be set up while the current one is being processed.

Capable of inserting components in four directions: 0°, 90°, 180°, and 270°, the AV132 optimizes productivity by simultaneously handling 26 and 52mm taped components and providing fast, full auto-recovery.
Features

The AV132 can reduce loading times by running two PCBs simultaneously, enabling efficient production due to a speed of 0.12s/component and a transfer speed of 2s/PCB.

The fixed feeder unit and the out-of-component detection feature allow to replenish components while maintaining long-term non-stop runs.

Preparation in advance or equipment operation during component change-over is possible.

Key features of AV132

Key features

In addition to high-speed insertion of 0.12 s/ component, operation rate is improved by adopting sequential component supply system
The vertical automatic feeder system enhances stability of component supply with reduced footprint and allows up to 40 components to be loaded
Various operation modes are realized by the two-separate component supply unit (80-slot type only)

Specifications of AV132

Specifications table

Model NumberNM-EJA5A NM-EJA6A
PCB dimensions (mm)L 50 mm × W 50 mm ～ L 508 mm × W 381 mm
Max Speed0.12 s/component
No of components inputNM-EJA5A：40 NM-EJA6A：40+40
Applicable componentsResistors1 / 8 W , 1 / 6 W , 1 / 4 W , 1 / 2 W , Jumper wire ( tin-plated wire ) , Diodes , Cylindrical ceramic capacitor
Insertion direction4 directions ( 0 °, 90 °, 180 °, 270 °)
