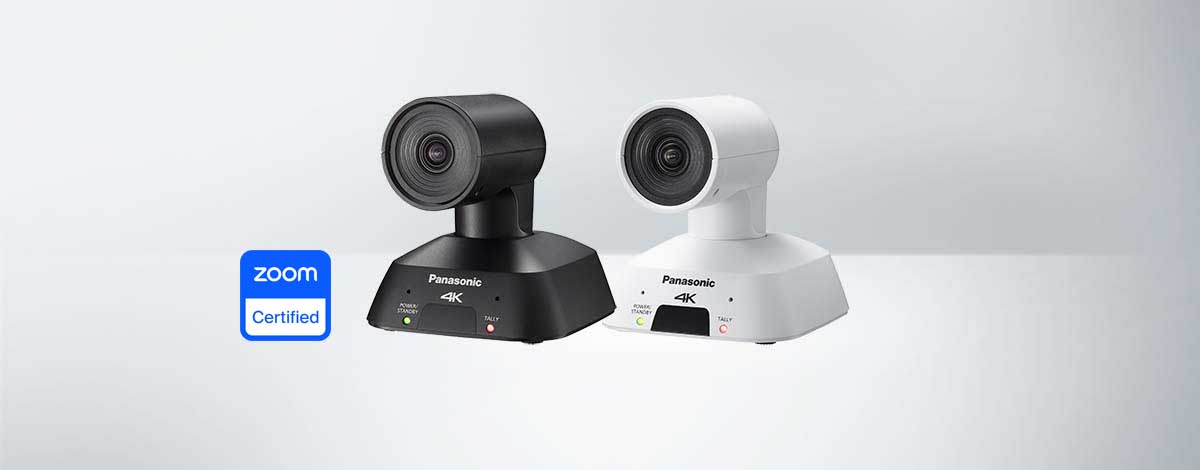

Wide Angle 4K ePTZ with IP Streaming

AW-UE4

The AW-UE4 electronic PTZ Camera supports up to 4K/30P video output

View full specifications Share page

Key features of AW-UE4

Key features

High-Quality 4K 30p/25p Video Output

Ultra-Wide-Angle Lens with 111°Field of View

Single Cable Solution

Operation without connecting an AC adapter via PoE or via USB

Zoom Certified

Panasonic Business is a Barco ClickShare Alliance Partner and the AW-UE4 is certified as ‘Compatible with ClickShare Conference’.

ClickShare Conference

Compact 4K ePTZ Camera for up to 4K 30p high quality video output. Equipped with an ultra-wide-angle lens with a 111° field of view and capable of video output with three interfaces, HDMI, LAN and USB. The AW-UE4 is ideal for spaces both large and small, with a wide-angle of view perfect for huddle spaces or e-sports production.

Equipped with an ultra-wide-angle lens with a 111° field of view to capture every part of even the largest spaces and transmit wide-angle video in limited installation space.

Download the PTZ Angle of View & Object Distance calculator

The unit supports PoE*supply as well as used as a USB camera that can be powered from a computer, realizing a single cable solution for video transmission, camera control and power supply.

Furthermore, the unit boasts high-performance operability through RTMP (Real-Time Messaging Protocol) compatibility for direct upload of video to live-streaming services, and is also excellent for live production. The camera handles both large and small spaces thanks to 4K high image quality and wide-angle video output that’s perfect for recording everything from lectures and meetings to e-Sports production.

*: PoE is the abbreviation for Power over Ethernet.

LATEST UPDATE

Show more Show less

High-Quality 4K 30p/29.97p/25p* Video Output

Output format:

4K: 2160/30p, 2160/29.97p, 2160/25p
HD: 1080/60p, 1080/59.94p, 1080/50p, 1080/30p, 1080/29.97p, 1080/25p, 720/60p, 720/59.94p, 720/50p

Enables the entire space to be captured regardless of the installation position.

*Actual output format is UHD (3840 x 2160) 29.97p/25p

Single Cable Solution

In addition to PoE* supply, power supply from a computer via USB cable is also supported to enable operation without connecting an AC adapter.

*PoE is the abbreviation for Power over Ethernet.

Using PoE Supply

Using as a USB Camera

* AC adapter or PoE supply is required for HDMI output.

Rear View

Product gallery

Only videos

Only images

All

Specifications of AW-UE4

Specifications table

General -> Power Requirements	DC 5 V±5 % (4.75 V to 5.25 V)
General -> PoE	PoE IEEE802.3at compliant: DC37 V to 57 V
General -> Current Consumption	1.0A (USB input), 0.2A (PoE power supply)
General -> Ambient Operating Temperature	0 °C to 40 °C (32 °F to 104 °F)
General -> Ambient Operating Humidity	20 % to 90 % (no condensation)
General -> Storage Temperature	-20 °C to 50 °C (-4 °F to 122 °F)
General -> Weight	Approx. 0.5 kg (1.1 lb) (excluding mount bracket)
General -> Dimensions	W 123 mm x H 131 mm x D 139 mm (4-53/64 inches x 5-5/32 inches x 5-29/64 inches) (excluding protrusions, mount bracket) W 123 mm x H 131 mm x D 152 mm (4-53/64 inches x 5-5/32 inches x 5-62/64 inches) (excluding mount bracket)

View full specifications

Accessories & Software

Remote Camera Controller

Remote Camera Controller

AW-RP150GJ

The AW-RP150 will be the newest remote camera controller to compliment Panasonic's comprehensive professional PTZ camera lineup. It has the same great functionality of the AW-RP120 and AW-RP50, and joins the lineup with significant improvements over those models, including a new one-hand operation joystick (controlling PTZ or Focus) and a large touch-panel LCD screen for monitoring and menu setting.

View product

Key Features
Large touchscreen for easy usability
New joystick for one-handed operation
Simplified PTZ camera presets and tracing memory
Intuitive design elements based on direct feedback from everyday robotic camera operators
3G-SDI Active Through Output, 5 x RS-422, LAN PoE+, 2 x GPIOs

Showing 1 of 1

Related resources

View in Downloads

Select all

AW-UE4 PTZ Camera Brochure PDF (English)

Download

Broadcast and Pro AV Quick Reference Guide PDF (English) (for Web)

Download

Select all

AW-UE4WGN Rear High Res

Download

AW-UE4KGN Slant High Res

Download

AW-UE4WGN Slant High Res

Download

Select all

Discover the new AW-UE4 wide angle 4K PTZ camera with IP streaming

Find out how to set-up the new AW-UE4 - Part 1 (over IP)

Find out how to set-up the new AW-UE4 - Part 2 (USB & HDMI)

Sorry there was an error...
The files you selected could not be downloaded as they do not exist.

You selected items.
Continue to select additional items or download selected items together as a zip file.

You selected 1 item.
Continue to select additional items or download the selected item directly.

Download selected file

Full specifications

Download specifications

General -> Power Requirements	DC 5 V±5 % (4.75 V to 5.25 V)
General -> PoE	PoE IEEE802.3at compliant: DC37 V to 57 V
General -> Current Consumption	1.0A (USB input), 0.2A (PoE power supply)
General -> Ambient Operating Temperature	0 °C to 40 °C (32 °F to 104 °F)
General -> Ambient Operating Humidity	20 % to 90 % (no condensation)
General -> Storage Temperature	-20 °C to 50 °C (-4 °F to 122 °F)
General -> Weight	Approx. 0.5 kg (1.1 lb) (excluding mount bracket)
General -> Dimensions	W 123 mm x H 131 mm x D 139 mm (4-53/64 inches x 5-5/32 inches x 5-29/64 inches) (excluding protrusions, mount bracket) W 123 mm x H 131 mm x D 152 mm (4-53/64 inches x 5-5/32 inches x 5-62/64 inches) (excluding mount bracket)
General -> Finish	AW-UE4WG: White AW-UE4KG: Black
General -> Controller Supported	See the Compatibility Chart for Operation Devices and Application Software page
Camera Unit -> Imaging Sensor	1/2.5-type MOSx1
Camera Unit -> Zoom	• Digital Zoom: 4x
Camera Unit -> Lens	F2.4 (f=2.21 mm, 35 mm conversion: 13.4 mm)
Camera Unit -> Angle of View Range	LDC ^2 Off: Horizontal field of view 111°, vertical field of view 75°, diagonal field of view 120° LDC ^2 On: Horizontal field of view 108°, vertical field of view 75°, diagonal field of view 116°
Camera Unit -> Focus	Single focus
Camera Unit -> Focus Distance	700 mm
Camera Unit -> Minimum Illumination	4 lx (conditions: 50 IRE, gain 42 dB, shutter speed 1/60)
Camera Unit -> Horizontal Resolution -> 4K	1,400 TV typ (center area)
Camera Unit -> Horizontal Resolution -> HD	900 TV typ (central area)
Camera Unit -> Digital Pan and Tilt Angle	2x digital zoom: Pan approx. ± 34°, tilt approx. ± 21° 4x digital zoom: Pan approx. ± 45°, tilt approx. ± 30°
Camera Unit -> Gain Selection	Auto, 0 to 42 dB ^*3Can be set in 3 dB increments
Camera Unit -> Electronic Shutter Speed -> FullAuto	Full Auto Mode with Slow Shutter On / Shutter Priority Mode 1/1, 1/2, 1/5, 1/10, 1/20, 1/30, 1/60, 1/120, 1/240, 1/480, 1/1000, 1/2000, 1/4000, 1/8000, 1/16000 [60 Hz/59.94 Hz] 1/1, 1/2, 1/5, 1/10, 1/20, 1/25, 1/50, 1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/16000 [50 Hz] Full Auto Mode with Slow Shutter Off 1/60, 1/120, 1/240, 1/480, 1/1000, 1/2000, 1/4000, 1/8000, 1/16000 [60 Hz/59.94 Hz] 1/50, 1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/16000 [50 Hz]
Camera Unit -> Electronic Shutter Speed -> Manual	1/1, 1/2, 1/5, 1/10, 1/20, 1/30, 1/60, 1/120, 1/240, 1/480, 1/1000, 1/2000, 1/4000, 1/8000, 1/16000 [60 Hz/59.94 Hz] 1/1, 1/2, 1/5, 1/10, 1/20, 1/25, 1/50, 1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/16000 [50 Hz]
Camera Unit -> White Balance	ATW, AWB A, AWB B, 3200K, 5600K
Camera Unit -> Chroma Amount Variability	11 steps (0 to 10)
Input Connector -> DC IN	PoE
Output Connector -> HDMI	HDMI Connector 4:4:4/8 bit ・HDCP is not supported. ・Viera Link is not supported.
Input/Output Connector -> LAN	LAN terminal for IP control (RJ-45)
Input/Output Connector -> USB	Type-C connector
Pan-tilt Head Unit -> IP connecting cable	・When a PoE ethernet hub is used: LAN cable ^8(category 5e or above), max. 100 m (328 ft) ・When a PoE ethernet hub is not used: LAN cable ^8(category 5 or above), max.100 m (328 ft)
Pan-tilt Head Unit -> Installation Method^*4	Stand-alone (Desktop) or suspended (Hanging) ^*7
Pan-tilt Head Unit -> Panning Range	±110° (manual)
Pan-tilt Head Unit -> Tilting range	±25° (manual)
IP Streaming -> Image Streaming Mode	MJPEG (HTTP), H.264 (RTSP/RTMP/RTMPS), H.265 (RTSP)
IP Streaming -> Image Resolution	[MJPEG] 1280×720、640×360 [H.264/H.265] 3840×2160、1920×1080、1280×720、640×360
IP Streaming -> Image Transmission Setting (MJPEG) -> Frame Rate^*7	Max. 30fps (25fps)
IP Streaming -> Image Transmission Setting (MJPEG) -> Max Bit Rate^*7	Unspecified
IP Streaming -> Image Transmission Setting (H.264) -> Frame Rate	[60 Hz/59.94 Hz] 5fps / 15fps / 30fps / 60fps (4K up to 30fps) [50 Hz] 5fps / 10fps / 25fps / 50fps (4K up to 25fps)
IP Streaming -> Image Transmission Setting (H.264) -> Max Bit Rate	1024kbps to 32768kbps
IP Streaming -> Image Transmission Setting (H.265) -> Frame Rate	[60 Hz/59.94 Hz] 5fps / 15fps / 30fps / 60fps (4K up to 30fps) [50 Hz 9] 5fps / 10fps / 25fps / 50fps (4K up to 25fps)
IP Streaming -> Image Transmission Setting (H.265) -> Max Bit Rate	1024kbps to 32768kbps
IP Streaming -> Audio Compression Format	AAC-LC, 48kHz/16bit/2ch
IP Streaming -> Supported Protocol -> IPv6	TCP/IP, UDP/IP, HTTP, RTSP, RTP, RTP/RTCP, DNS, ICMPv6
IP Streaming -> Supported Protocol -> IPv4	TCP/IP, UDP/IP, HTTP, RTSP, RTP, RTP/RTCP, DHCP, DNS, ICMP, ARP, RTMP, RTMPS
USB web camera -> Image output	USB Video Class Ver1.1
USB web camera -> Video Compression Format	YUV, MJPEG
USB web camera -> Image resolution -> YUV	640 x 360
USB web camera -> Image resolution -> MJPEG	3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360
USB web camera -> Image Transmission Setting (frame rate) -> YUV	[60 Hz/59.94 Hz] :15fps [50 Hz]:10fps
USB web camera -> Image Transmission Setting (frame rate) -> MJPEG	[60 Hz/59.94 Hz] 30fps ^5/ 15fps ^5/ 5fps [50 Hz] 25fps ^5/ 10fps ^5/ 5fps
USB web camera -> Audio Output	USB Audio Class Ver1.0
USB web camera -> Audio Compression Format	Linear PCM, 48KHz/16bit/2ch
Internal Mic -> Internal Mic	Stereo microphone
Internal Mic -> Audio On/Off	Available (mute function)
Internal Mic -> ALC Function	Available
Footnote Description	AW-RP60GJ connection support planned for the future. See the Panasonic website for more details. Use may require a software version update. LDC is the abbreviation for Lens Distortion Correction. HDCP not supported. VIERA Link not supported. VIERA Link not supported. JPEG and H.264, H.265 simultaneous operation supported. To ensure safety, the unit must be secured using the mount bracket supplied. STP (Shielded Twisted Pair) recommended.
