The World’s Smallest, Lightest, and Quietest 20,000*1 lm Projector
PT-MZ14KL
*Light output of PT-MZ20KL. As of November 2022, based on publicly available dimensions, weight, and operation noise values for LCD laser projectors with 20,000 lm brightness and above. Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. Value is average of all products when shipped.
Key features
World’s Smallest, Lightest, and Quietest 14,000 lm LCD Projector |
Delivering up to 20,000 lm on AC 100–240 V, a World First |
Long-Life Energy-Saving Design Minimizes Problems |
PROJECTOR TYPE | PT-MZ20 SERIES | |||
---|---|---|---|---|
MODELS | PT-MZ20KL | PT-MZ17KL | PT-MZ14KL | PT-MZ11KL |
RESOLUTION | WUXGA (1920 x 1200 pixels, 16:10) | WUXGA (1920 x 1200 pixels, 16:10) | WUXGA (1920 x 1200 pixels, 16:10) | WUXGA (1920 x 1200 pixels, 16:10) |
BRIGHTNESS | 20,000 lm1 | 16,500 lm1 | 14,000 lm1 | 11,000 lm1 |
AVAILABILTY | April 2023 | April 2023 | April 2023 | April 2023 |
1 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. Value is average of all products when shipped
Note: Projector ships without a lens.
World’s Smallest, Lightest, and Quietest 20,000 lm* LCD Projector
Introducing the smallest, lightest, and quietest LCD laser projector in its class with up to 20,000 lm* , compact 23 kg*2 (50.7 lbs) body, and quiet 42 dB*3 operation. Optimized optical engine delivers a 25 % increase in brightness over the 16,000 lm*4 PT-MZ16KL from the same body size, ensuring clear visibility in well-lit spaces.
* Light output of PT-MZ20KL. As of November 2022, based on publicly available dimensions, weight, and operation noise values for LCD laser projectors with 20,000 lm brightness and above. Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. Value is average of all products when shipped.
*2 For PT-MZ20KL. PT-MZ17KL/MZ14KL/MZ11KL: 22.5 kg (49.6 lbs).
*3 PT-MZ20KL in NORMAL Mode. Noise levels of other models in NORMAL Mode are 38 dB for PT-MZ17KL and 35 dB for PT-MZ14KL/MZ11KL.
*4 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. Value is average of all products when shipped.
Long-Life Energy-Saving Design Minimizes Problems
Multi-Laser Drive Engine and Backup Input* enable continuous projection even in the event of trouble, and no light-source or filter maintenance is required for 20,000 hours*2 . The series efficiently delivers high brightness with MZ20KL achieving the lowest power consumption in its class*3 for sustainable operation.
* Primary Input (HDMI 1) and Backup Input (HDMI 2) terminal assignment is fixed. Input signals to primary and backup inputs must be identical.
*2 Around this time, light output will have decreased to approximately 50 % of its original level ([PICTURE MODE]: [DYNAMIC], [DYNAMIC CONTRAST] set to [3], temperature 30 °C [86 °F], elevation 700 m [2,297 ft] with 0.15 mg/m3 of particulate matter). Replacement of parts other than the light source may be required in a shorter period. Estimated time until light output declines to 50 % varies depending on environment. Filter cleaning cycle varies depending on environment. Filter can be washed and reused up to two times.
*3 As of November 2022, based on publicly available power consumption values for LCD laser projectors with 20,000 lm brightness and above according to internal research
Delivering up to 20,000 lm* on AC 100–240 V, a World First**
PT-MZ20K Series is the industry’s first** 20,000 lm-class projector to deliver full brightness on AC 100–240 V power, eliminating need to install a high-voltage power supply. It supports NFC function*3 optional lenses including ET-EMU100 Ultra-Short Throw Zoom Lens, and preactivated upgrade kits for Geo Pro*4.
* Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. Value is average of all products when shipped.
** As of November 2022, based on LCD laser projectors with 20,000 lm brightness and above according to internal research.
*3 Projectors sold in some countries or regions require an ET-NUK10 Upgrade Kit available from PASS to activate NFC function. See NFC Regional Compatibility List for details.
*4 Geometry Manager Pro software for Windows® and preactivated upgrade kits require projector registration. Visit PASS to register your projector and download free software

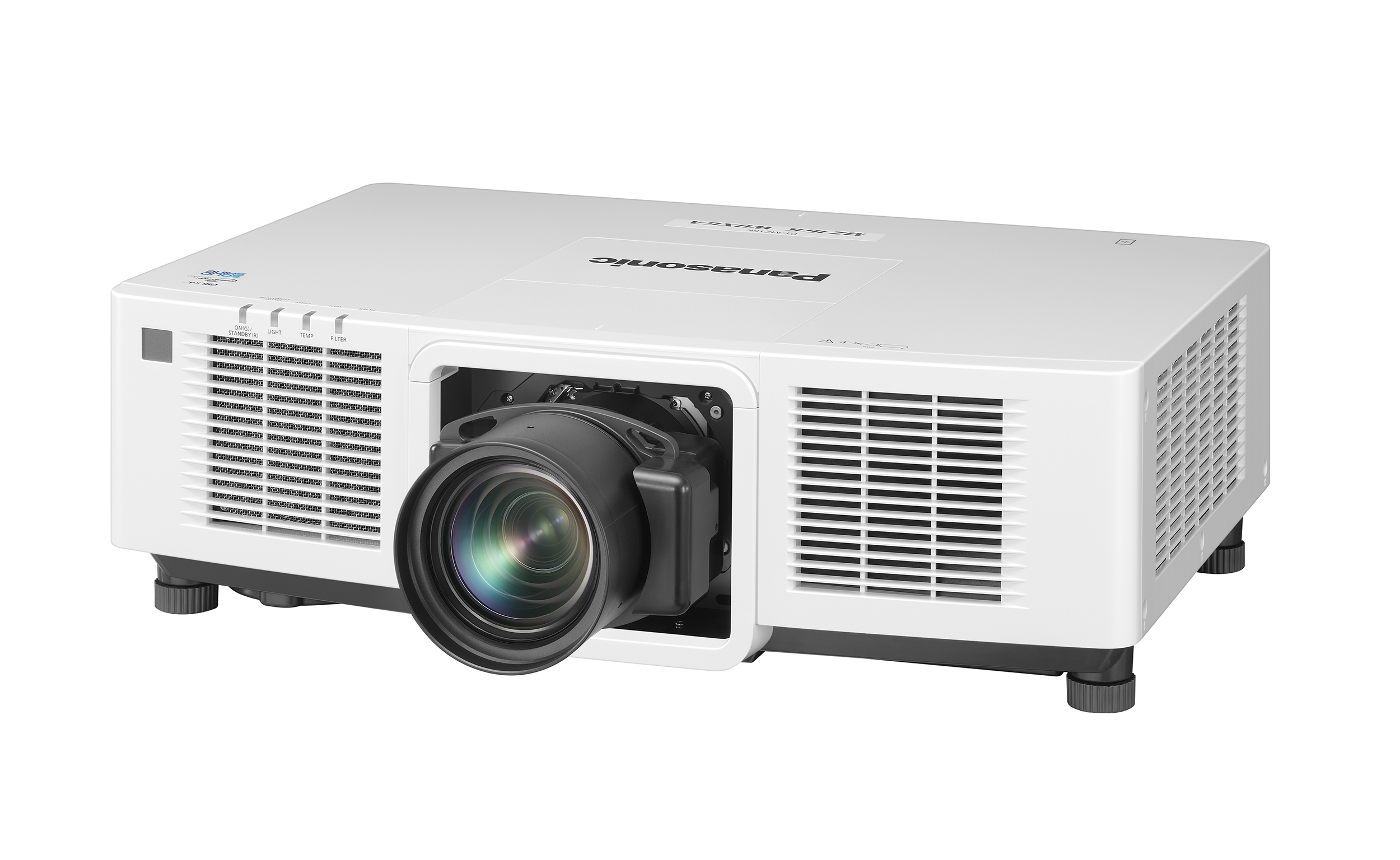

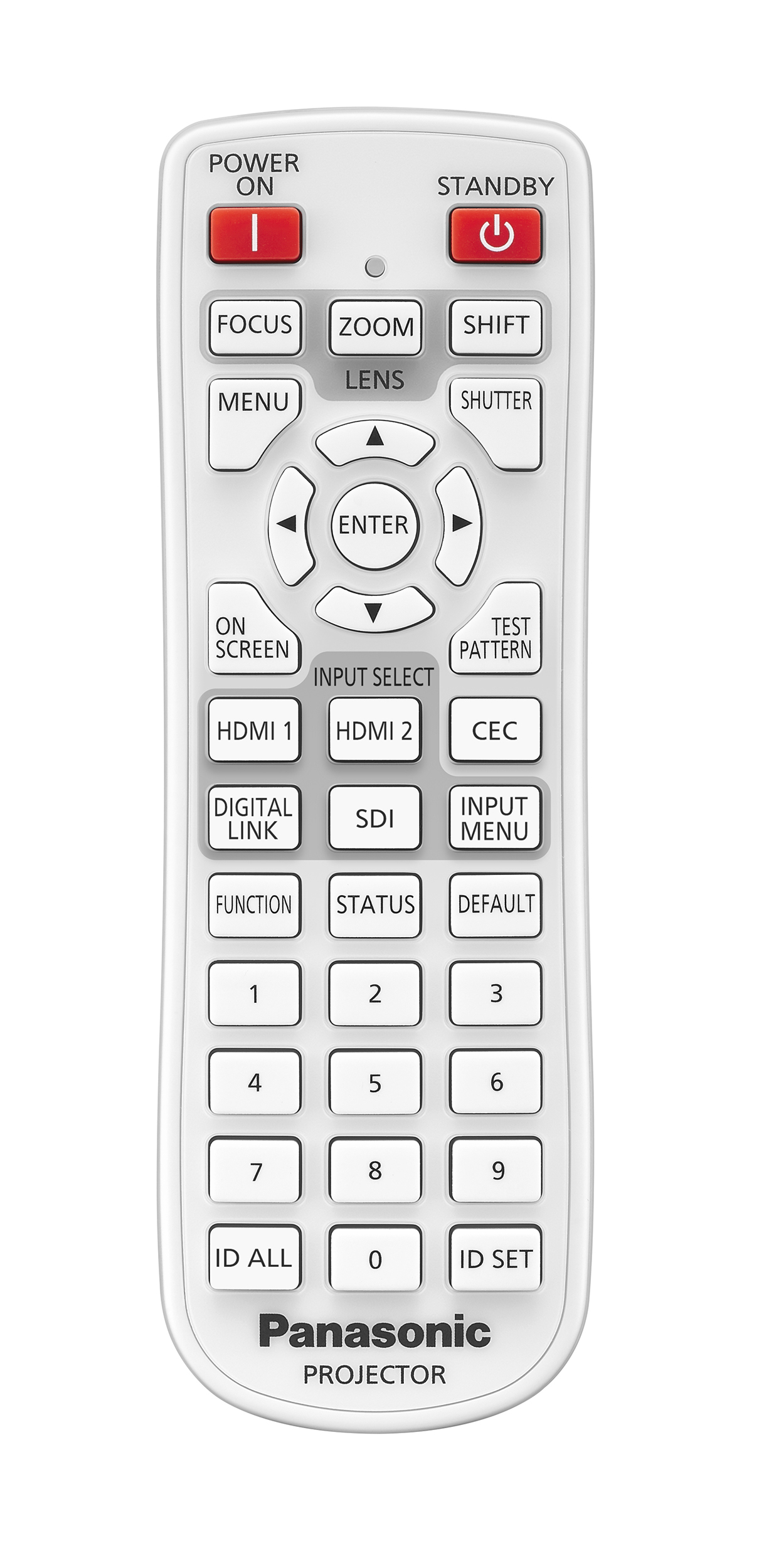

Product gallery
Specifications table
Projector type | LCD projector |
---|---|
LCD Panel | Panel Size | 25.4 mm (1.0 in) diagonal (16:10 aspect ratio) |
LCD Panel | Display System | Transparent LCD panel (x 3, R/G/B) |
LCD Panel | Drive Method | Active matrix method |
LCD Panel | Pixels | 2,304,000 (1920 x 1200 pixels) |
Light Source | Laser diode |
Light Output*1 *2 | 14,000 lm |
Time until light output declines to 50 %*3 | 20,000 hours (NORMAL/QUIET) |
Accessories & Software
Lenses for LCD Projectors > 10.000 lumen
ET-EMU100
Throw Ratio 0.330 – 0.353:1 (Aspect 16:10)0.329 – 0.353:1 (Aspect 16:9)0.396 – 0.425:1 (Aspect 4:3)
Lenses for LCD Projectors > 10.000 lumen
ET-EMW500
0.950-1.36:1 Throw Ratio Zoom lens for PT-MZ16KL/MZ13KL/MZ10KL
Lenses for LCD Projectors > 10.000 lumen
ET-EMW400
0.690-0.950:1 Throw Ratio Zoom lens for PT-MZ16KL/MZ13KL/MZ10KL
Lenses for LCD Projectors > 10.000 lumen
ET-EMW300
0.550-0.690:1 Throw Ratio Zoom lens for PT-MZ16KL/MZ13KL/MZ10KL
Showing 4 of 8
Brackets
ET-PKE301B
Mount bracket for the PT-MZ16K, PT-MZ770, PT-MZ670, PT-MZ570 Series projectors
Brackets
ET-PKD130H
High ceiling mount bracket with 6-axis adjustment mechanism
Brackets
ET-PKD120H
High ceiling mount bracket
Brackets
ET-PKD120S
Low ceiling mount bracket
Showing 4 of 4
Filters
ET-RFM100
Filter
Showing 1 of 1
PressIT
TY-WPS1 series
“PressIT” is Panasonic’s Wireless Presentation System that allows easy screen collaboration with just a single press of a button. This elegant solution, designed to make collaboration quick and simple in meeting rooms, can connect up to 32 devices at one time, allowing users to present on screen or via a projector at the touch of a button..
Showing 1 of 1
